Direct4Lean | Smart, Cost-Effective Parcel Lockers for Scalable Delivery Solutions

Various models and compartment sizes.

Autonomously battery operated, extended with solar panels.

Ready in less than 10 minutes.

Digital proof of delivery trace.

Bluetooth, NFC and DoV supported.

PRODUCTS

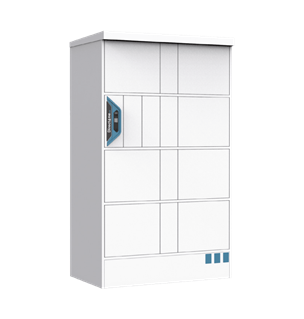

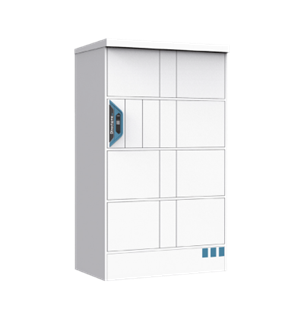

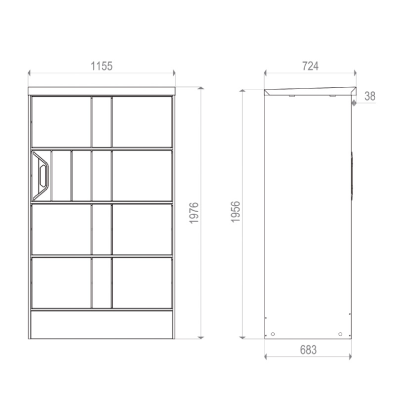

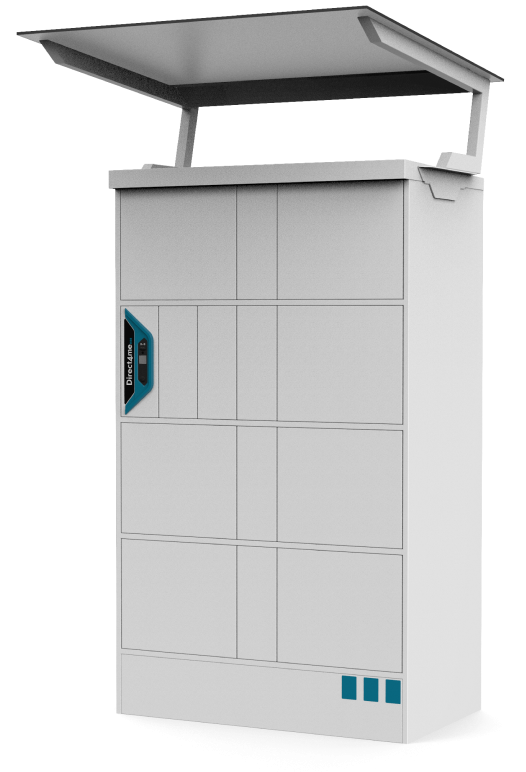

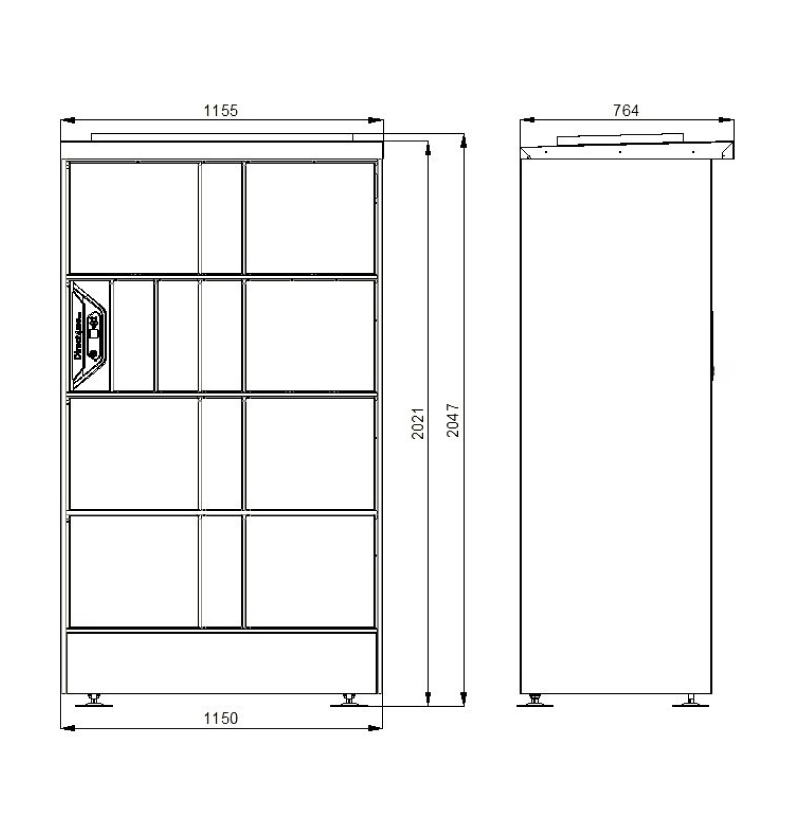

Direct4Lean 13

1155 x 2002 x 743 mm 13 compartments, 2 sizes: 6 x S (W x H x D): 124 x 386 x 665 (30 liters) 7 x L (W x H x D): 438 x 386 x 665 (110 liters)

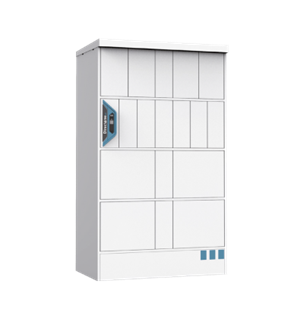

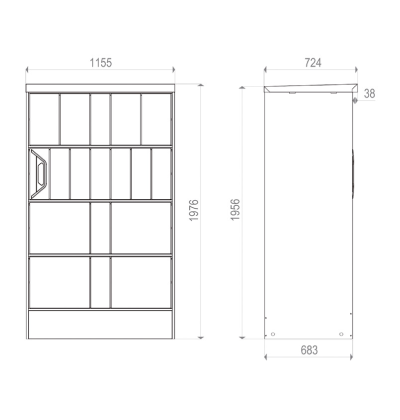

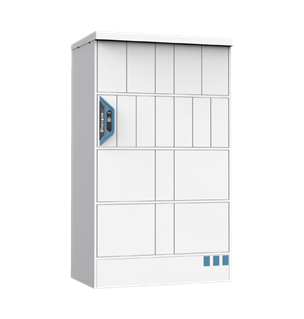

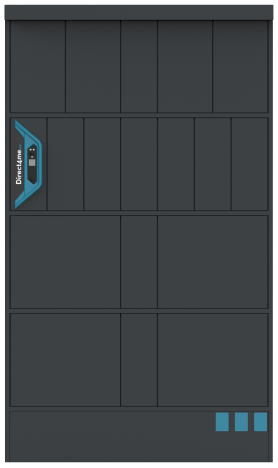

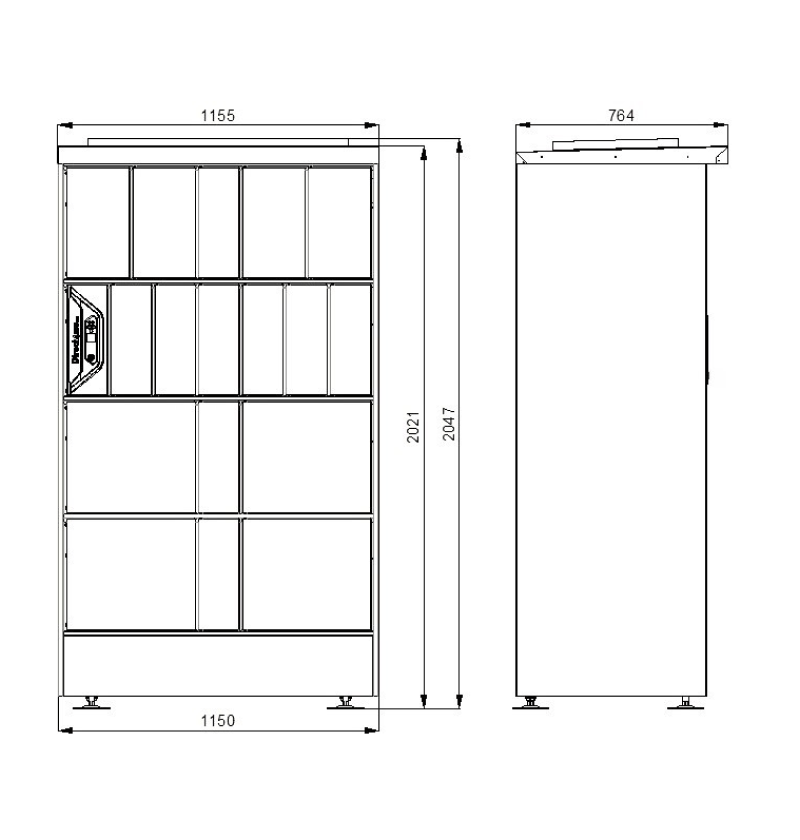

Direct4Lean 17

1155 x 2002 x 743 mm 17 compartments, 3 sizes: 9 x S (W x H x D): 124 x 386 x 665 (30 liters) 4 x M (W x H x D): 203 x 386 x 665 (50 liters) 4 x L (W x H x D): 438 x 386 x 665 (110 liters)

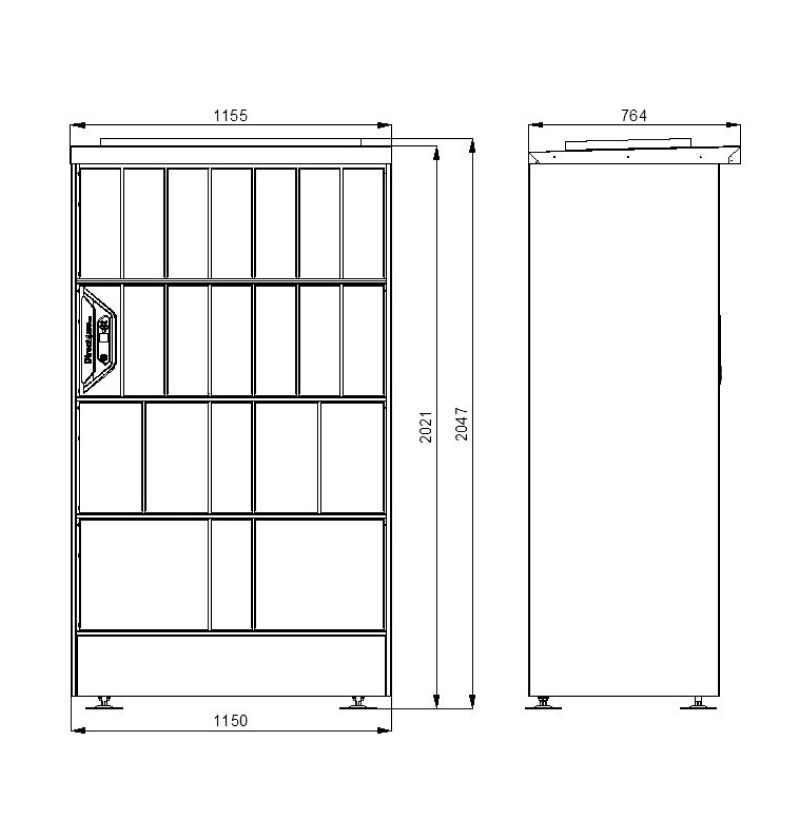

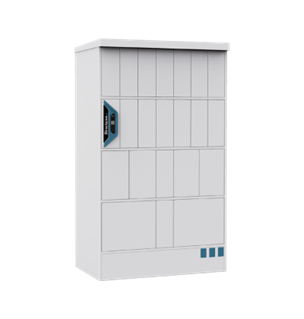

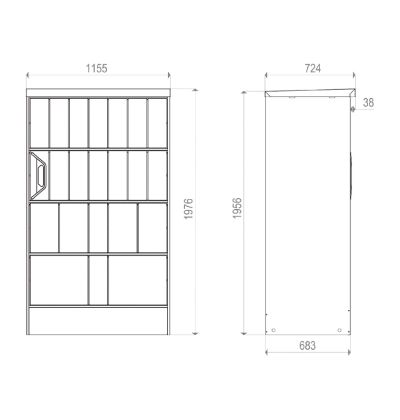

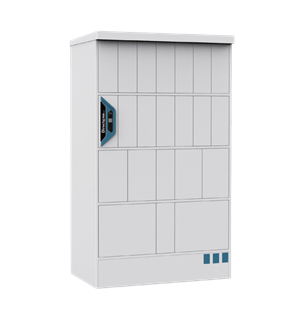

Direct4Lean 21

1155 x 2002 x 743 mm 21 compartments, 3 sizes: 15 x S (W x H x D): 124 x 386 x 665 (30 liters) 4 x M (W x H x D): 203 x 386 x 665 (50 liters) 2 x L (W x H x D): 438 x 386 x 665 (110 liters)

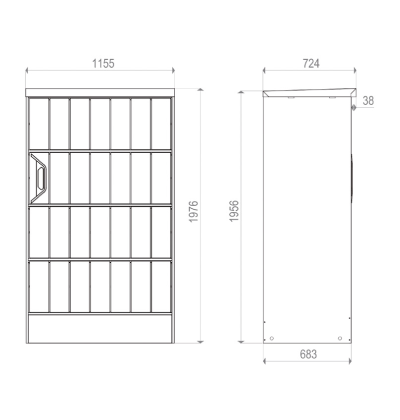

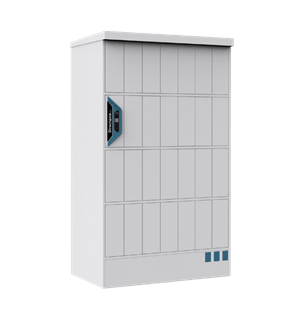

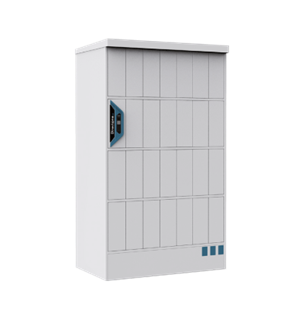

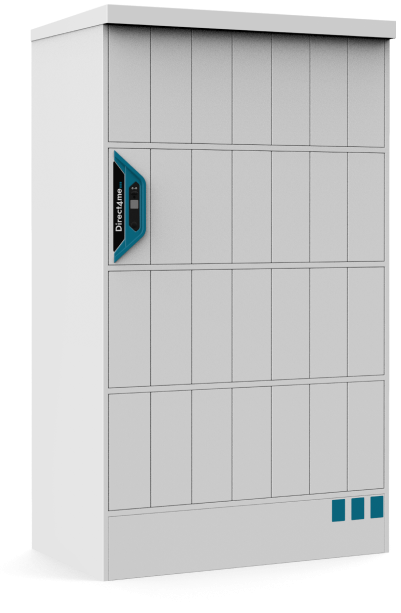

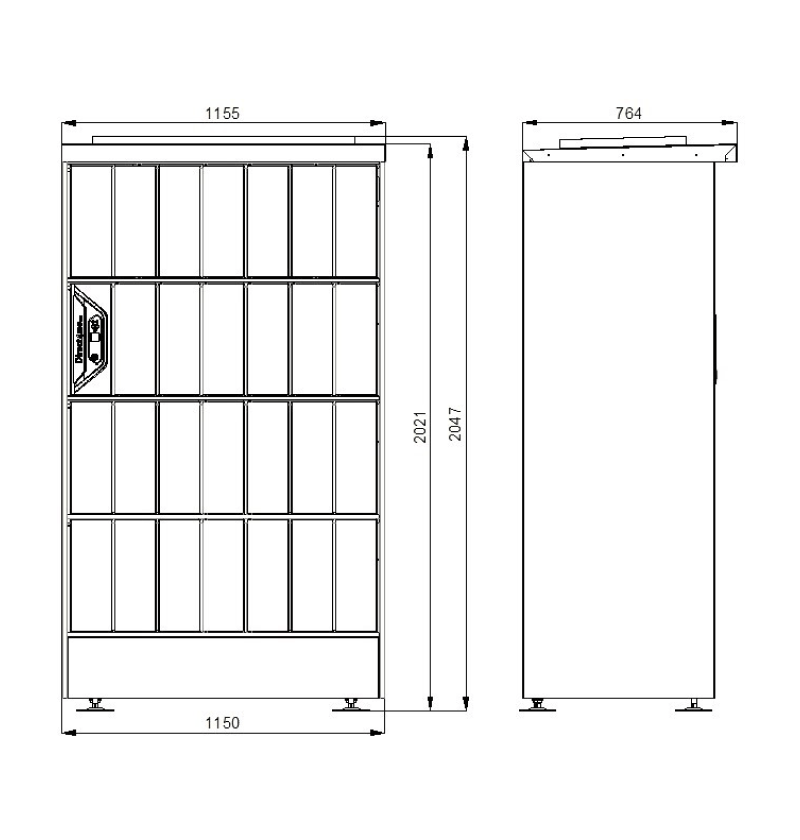

Direct4Lean 27

1155 x 2002 x 743 mm 27 compartments, 1 size: 124 x 386 x 665 mm (30 liters)

Download catalogue (PDF)

Standard Direct4Lean features

Material

Durable zinc-protected pre-painted galvanized sheet metal
Roof material Polycarbonate

Dimensions

MultiSpace (W x H x D): 1155 x 2002 x 743 mm

Compartments dimensions

S (W x H x D): 124 x 386 x 665 (30 liters)
M (W x H x D): 203 x 386 x 665 (50 liters)
L (W x H x D): 438 x 386 x 665 (110 liters)

Colors

Anthracite and white standard
Other RAL colors per request

Installation options

Suitable for indoor and outdoor use
Placed on a flat hard surface (i.e. concrete, plaster or similar)
Levelling options +/-35 mm

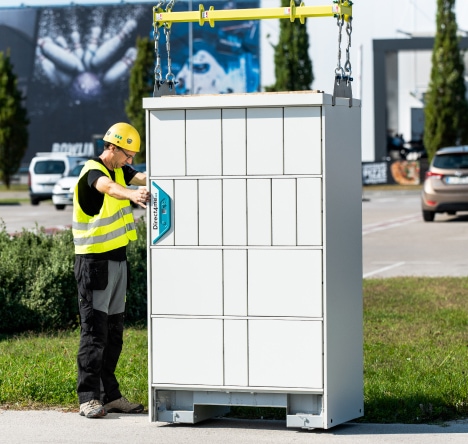

Direct4Lean can be transported and installed using a standard forklift / pallet trolley or crane

Area of use

Residential multi-apartment
eCommerce click&collect
Parcel lockers

Power Supply

Integrated exchangeable rechargeable battery with lifespan over 5 years
Optional solar charger

Communications

Bluetooth
NFC
Patented DoV (Data Over Voice) technology
QR code and short messages displaying options
Mobile App & Feature phones support

Lighting

Each parcel compartment illuminated upon opening
Additional light for exterior illumination (optional)

Direct4.me Sites

Direct4Lean parcel lockers can be combined along with Direct4Smart locker, DockSpaces and single D-Spaces to a virtual parcel locker site
Unlimited number of Direct4Lean lockers and D-Spaces can be used on a single location

Operating conditions

Temperature: -20 to +55 oC
Relative humidity 5 to 100%
UV resistant materials

Certifications and directives compliance

RED 2014/53/EU
RoHS 2011/65/EU
IEC 62368-1:2014
EN 62368-1:2014 + A 11:2017
EN 303446-1
EN 300 330

All of our Spaces WORK WITH

Direct4.me Customer mobile app

Central user interface for Direct4.me users
Available for IOS, Android and HarmonyOS
Activate, control, and manage your home D-Space
Share access with your family and friends
Redirect parcels, authorize other people to pick it up

More about Customer mobile app

Direct4.me Business mobile app

Manage D-Spaces in public and community locations
A ready-made solution for couriers or any type of handlers (i.e., fulfillment centers) to deliver parcels to lockers, and retrieve the ones not picked up by customers, or the ones customers want to return
Mobile interface that serves as a single interaction point for all business users
Available for IOS, Android and HarmonyOS

More about Business mobile app

Direct4.me Business Portal

Home for all your shipments, parcel lockers, and couriers
Control and manage parcels delivered to D-Spaces
Assign couriers or any type of handlers to deliver parcels to lockers and retrieve them
One-stop tool for customer support
Instant overview of your parcel business, reports, and analytics

More about Business Portal

Multiple Access Options

Anyone can pick up a parcel – with or without a mobile app, and with or without an account.
Access options include PIN codes, barcodes, Bluetooth and our patented Data-Over-Voice (DoV) technology.

Learn more

Any courier, any eCommerce - with or without integration

Couriers and logistic companies, virtually anyone can deliver to private D-Spaces using the ”anyone can deliver” method. Simply scan the QR code on D-Space and if the locker is free, initiate the delivery process. No dedicated mobile app or other devices are required.
eCommerce using D-Spaces as a Click & Collect solution can start using Direct4.me immediately, with no integration needed. All tools from Direct4.me Business Portal to the Business Mobile app are ready-made and come with D-Spaces.
Integration via APIs to optimize processes, especially when the number of parcels, couriers, and D-Spaces grow. Even integration can be done gradually. Integrated Direct4.me with your IT systems brings additional benefits like reservation of spaces, full parcel traceability, as well as reporting and analytics.
